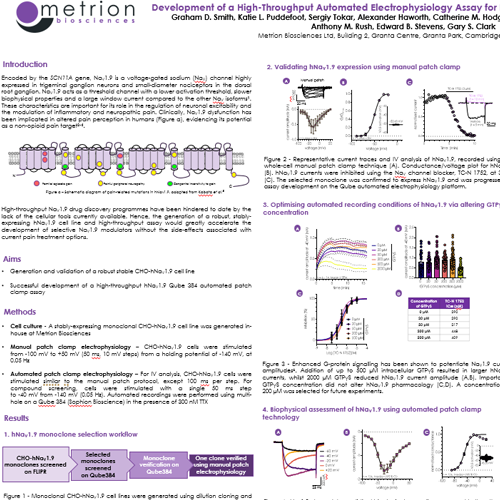

Development of a High-Throughput Automated Electrophysiology Assay for Human NaV1.9 Inhibitor Screening

Poster Description

Introduction

The voltage-gated sodium channels Na_V1.7, Na_V1.8, and Na_V1.9 drive action potentials in nociceptors, with Na_V1.9 regulating firing thresholds. There is a significant need for new chronic pain treatments due to the limitations of existing analgesics. While Na_V1.7 and Na_V1.8 have been widely explored, Na_V1.9 is an attractive pain target due to its nociceptor-specific expression and genetic link to pain insensitivity. However, its prosecution has been challenging due to expression difficulties in heterologous systems.

Metrion has developed a monoclonal CHO cell line expressing hNa_V1.9, validated via manual and automated patch clamp techniques. Using Qube384, we established a high-throughput Na_V1.9 assay, recording stable currents with GTPγS and multi-hole acquisition. The sodium channel inhibitor TC-N 1752 showed concentration-dependent inhibition (IC50 0.45 µM). Our robust high-throughput electrophysiology assay provides a reliable platform for Na_V1.9 drug discovery.
